Tension
Chang Xu (Fall 2017)
This topic covers Tension.
Main Idea
What is Tension?

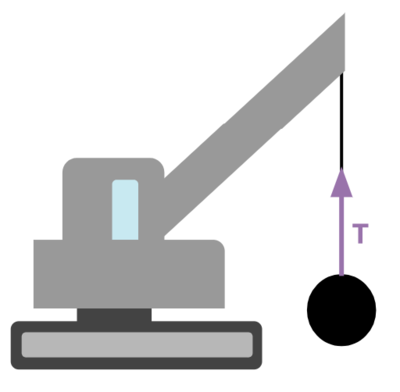

Tension is the force exerted by a rope (or anything that can be used to hang another object) on the object that is hanging from it. Usually, it is ropes and cables that have the tension force. In general, anything that is flexible can pull an object and have tension force. In consequence, the tension force can only be a pulling force. The rope will eventually go slack if someone tries to push with a rope, and it will act like just an object. Later we will see that this concept will help with draing force diagrams with the force of tension always pulling the object.
Tension is considered a contact force which means that the force is exerted when objects are touching. Usually, the force of tension is the force that is transmitted through a rope. If someone is pulling on a block with a rope, the person exerting force on the rope which transmits that force to the block. In problems, the ropes and cables will usually be massless, which perfectly transfers the force.
How To Calculate Tension Force
Use Newton's second law to relate the motion of the object to the forces.
- Draw the forces exerted on the object in the question.
- Write down Newton's second law (a= ΣF/m ) for a direction in which the tension is directed.
- Solve for the tension using the Newton's second law equation (a= ΣF/m )
Following these three steps will solve tension problem.
Example Problems
Example 1: Angled rope pulling on a box
A 2.0kg box of toy box is being pulled across a table by a rope at an angle θ=60º as seen below (ignore friction). The tension in the rope causes the box to slide across the table to the right with an acceleration of 3.0 m/s^2
What is the tension in the rope?
First draw a force diagram of all the forces acting on the box.
Now use Newton's second law. The tension is directed both vertically and horizontally, so it's a little unclear which direction to choose. However, since the acceleration is going horizontally, and since the tension is the only force directed horizontally, use Newton's second law in the horizontal direction.
- a= ΣF/m (use Newtons's second law for the horizontal direction)
- 3.0 m/s^2=Tcos60º/2.0kg (plug in the horizontal acceleration, mass, and horizontal forces)
- Tcos60º=(3.0 m/s^2)(2.0kg)
- T=[(3.0 m/s^2)(2.0kg)]/(cos60º)
- T=12N
Example 2: Box hanging from two ropes
A 0.25 kg container hangs at rest from two strings secured to the ceiling and wall respectively. The diagonal rope under tension T1 is directed at an angle θ=30º from the horizontal direction as seen below.
What are the tensions (T1 and T2) in the two strings?
First draw a force diagram of all the forces acting on the container.
Now use Newton's second law. There are tensions directed both vertically and horizontally, so again it's a little unclear which direction to choose. However, since there is force of gravity (a vertical force), start with Newton's second law in the vertical direction.
- a=ΣF/m (use Newton's second law for the vertical direction)
- 0=(T2*sin30º-Fg)/0.25kg
- T2=Fg/(sin30º)
- T2=mg/(sin30º)
- T2=[(0.25kg)(9.8m/s²)]/(sin30º)
- T2=4.9N
Now that we know T2 we can solve for the tension T1 using Newton's second law for the horizontal direction.
- a=ΣF/m (use Newton's second law for the horizontal direction)
- 0=(T2*cos30º-T1)/0.25kg (plug in the horizontal acceleration, mass, and horizontal forces)
- T1=T2*cos30º
- T1=(4.9N)*cos30º
- T1=4.2N
Connectedness
- How is this topic connected to something that you are interested in?
When I was little, I went to a department store and I saw a transparent elevator. I never knew how elevator operated but through the transparent elevator, I realized that the pulling force of the ropes was what was keeping the elevator moving. This pulling force is tension and I later realized that this tension force is evident everywhere in my daily life.
- How is it connected to your major?
I am not exactly sure how tension is connected to industrial engineering, which is my major. However, I can say that tension is a very basic concept in physics related to force and it is important to understand physics mechanism in studying industrial engineering.
- Is there an interesting industrial application?
Tension force can be seen in everyday life, just like the elevator example I mentioned above. Tension force is applied when I pull a clothing tags.
See also
- Are there related topics or categories in this wiki resource for the curious reader to explore? How does this topic fit into that context?
I think it will be interesting to make connection between tension force and friction. Use both tension and friction in pulling a box in ice skating environment and concrete environment. This would be a good example to explore more about the topic.
Further reading
Books, Articles or other print media on this topic
Chabay, Ruth W., and Bruce A. Sherwood. Matter & Interactions. Hoboken, NJ: John Wiley & Sons, 2015. Print.
