Covalent Bonds

Claimed by Elizabeth Apalkova, 7/22/2022

The Main Idea

Covalent bonds are a type of interatomic bond through which two atoms share a pair of valence electrons and become bound to each other as a result. Covalent bonds are intramolecular forces. They are the bonds which hold atoms together while intermolecular forces are the interactions between the molecules. These are the bonds which allow for the formation of the majority of matter on our planet, and carbon's wide variety of possible covalent bond configurations is one of the primary reasons why life was able to eventually spring from it. Covalent bonds can even produce a dipole moment within molecules if an electron is attracted more greatly to one of the two atoms. Molecules made from nonpolar covalent bonds are unable to mix with those made from polar covalent bonds, which is what causes some substances to be hydrophobic, as they are unable to mix with the polarized water molecules.

There are two different types of covalent bonds:

Polar covalent: electrons are not being equally shared between the atoms. There is a partially positive charge and a partially negative charge that results in the molecule. This phenomena is a result of the difference in electronegativity of the atoms in the bond. The higher the electronegativity of the atom, the more it pulls electrons towards itself and results in a partial negative charge.
Nonpolar covalent: electrons are being equally shared between the atoms

Both of these bonds can have sigma and pi bond interactions depending on the bond:

Sigma Bond (σ Bond): Formed by the direct overlapping of electron orbitals on two atoms. This is the strongest type of covalent bond.
Pi Bond (π Bond): Formed by the lateral overlapping of p or d orbitals on two atoms.

Both polar and nonpolar covalent bonds can have four types of additional covalent bonds:

Single Bond: The sharing of two electrons between two atoms
Double Bond: A pairing of one sigma bond and one pi bond, both of which connect the same two atoms together. This bond has electrons being shared
Triple Bond: A grouping of one sigma and two pi bonds, all of which connect the same two atoms together. This bond has six electrons being shared.
Half Bond: A bond formed from either one electron being shared between two atoms, or from when an electron shared between two atoms actually disrupts a regular covalent bond, slightly repelling the two electrons in the bond away from each other. These bonds hold half the amount of energy of a single covalent bond between the same atoms.

Strength of bonds

The bonds that are typically seen are covalent triple, double and single bonds.
The triple bond is the strongest and shortest bond while the double bond is weaker and longer and the single bond is the weakest and longest bond.

A Mathematical Model

The total energy present within the covalent bonds of a molecule can be found through simply adding together each bond's unique bond energy. For example, water (H₂O) contains two H-O bonds, each with a bond energy of 464 kJ/mol, so its total bond energy would be 464 + 464 = 928 kJ/mol. Therefore, it would take 928 kilojoules of energy to break apart the interatomic bonds in a mole of water molecules.

Bonds are also used to calculate the change in enthalpy in a reaction. The change in enthalpy is the bonds broken minus the bonds formed. That can be thought of as the bonds on the reactants side minus the bonds on the products side.

[table of common covalent bonds and their bond energies, found in https://openstax.org/books/chemistry-atoms-first-2e/pages/9-4-strengths-of-ionic-and-covalent-bonds]

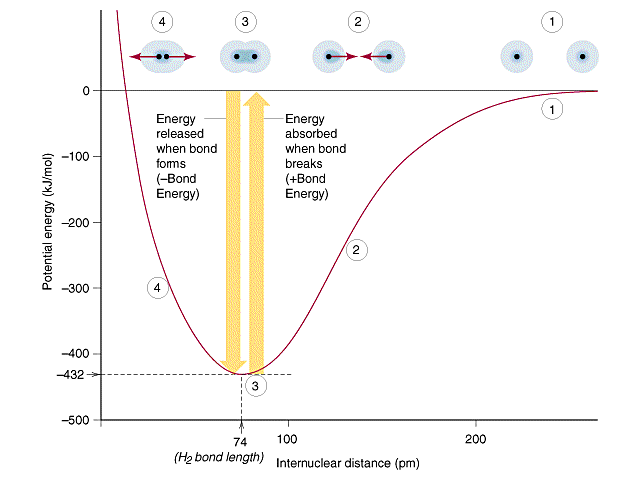

The potential energy associated with a covalent bond follows the familiar shape derived from applying quantum theory to Molecules.

A Computational Model

PhET's "Atomic Interactions" simulation, which depicts the differences in energy between when atoms are bonded and unbonded

https://phet.colorado.edu/sims/html/molecule-shapes/latest/molecule-shapes_en.html

This simulation allows us to see the bonds in real or modeled molecules and how the geometry and angles change as a result of different atoms and different bonds.

This is an image of the molecule XeF_2

This is an image of a model with one single, one double and one triple bond.

Examples

Simple

Find the total bond energy of an ozone molecule, which has two O=O bonds:

one O=O bond is 498 kJ/mol
498 + 498 = 996 kJ/mol

Middling

Find the total bond energy of a benzene ring, which has 3 C=C bonds, 3 C-C bonds, and 6 H-C bonds:

one C=C bond is 611 kJ/mol
one C-C bond is 345 kJ/mol
one H-C bond is 415 kJ/mol
3(611) + 3(345) + 6(415)
1983 + 1035 + 2490 = 5508 kJ/mol

Difficult

Calculate the enthalpy change 2C2H6+7O2->4CO2+6H2O In the reactants C-H has 415 kJ/mol

There are 12 C-H bonds

O=O has 498 kJ/mol

There are 7 O=O bonds

In the products C=O has 741 kJ/mol

There are 8 C=O bonds

O-H has 464 kJ/mol

There are 12 O-H bonds

Enthalpy change = (12(415)+7(498))-(8(741)+12(464)) = -3030 kJ

Connectedness

How is this topic connected to something that you are interested in?

I personally have always been fascinated with pharmaceuticals and how so many different and useful drugs can be created through the simple breaking and forming of covalent bonds. For example, the everyday drug that we use as a painkiller, acetaminophen is actually a fairly basic organic compound that can be created by forming and phenol group and an amide with a covalent bond. Also, better understanding of breaking covalent bonds could help us further chemotherapy related drugs to better target only cancerous cells.

How is it connected to your major?

The bonding of different atoms together can greatly alter their chemical and physical properties, and thus is responsible for much of the world around us and the events we witness within it. For example, "hydrogen bonding" between water molecules, that being how they attract and repel each other when at different orientations due to their polarity, greatly affects the pattern into which it solidifies, in this specific case causing ice, the solid form of water, to actually be less dense than liquid water. Not only is this an abnormal physical characteristic, it is also likely a major reason complex life was able to develop on Earth, since only the surface of the oceans would freeze during ice ages rather than their entirety, allowing life to grow under the insulating layer.

Is there an interesting industrial application?

The ability to trigger the formation of covalent bonds has allowed researchers to synthesize artificial DNA.
Covalent bonds can also be applied to gases and petroleum. Gas is held together by covalent bonds and our world runs on the use of gases and petroleum.

History

While it was not coined as covalent bonding until 1919 by Irving Langmuir, the theory of the ability for two atoms to share a pair of electrons can be traced back to Gilbert N. Lewis in 1916, who proposed that atoms would bond to each other in order to fill empty energy shells, thus causing them to no longer have any valence electrons. It was also Lewis who created dot notation, commonly used to indicate how many electrons an atom has and how many of those electrons are alone rather than being part of a pair. He also studied thermodynamics and the law of conservation of energy. Much later, in 1927, Walter Heitler and Fritz London proposed the first quantum explanation for covalence, arguing that the bonds are created by the overlapping of electron orbitals.
