Derivation of Average Velocity

Claimed by Gahan Wang (Fall 2016)

The basic formula for average velocity is easy to understand, but how exactly can you prove this formula? This reference aims to show how using derivation through geometric, algebraic, and computer models proves the formula for average velocity.

The Main Idea

The main idea is to provide proof of the universal equation for average velocity using derivation. The purpose is also to validate the derivation with fundamental concepts in science and in math.

A Mathematical Model

[math]\displaystyle{ T }[/math] = Time

[math]\displaystyle{ p }[/math] = Momentum

Geometric Derivation

The equation for average velocity is [math]\displaystyle{ v_{avg} = {\frac{v_{ix} + v_{fx}}{2}} }[/math] when velocity in any direction is changing at a constant rate.

When using geometry as proof, the area of a trapezoid can be used to support the derivation of average velocity. [math]\displaystyle{ A_{trap} = {\frac{top + bottom}{2}} * altitude = x_f - x_i = {\frac{v_{ix} + v_{fx}}{2}} * (T_f - T_i) }[/math]

By dividing the change in time, we get the widely recognized formula for average velocity, [math]\displaystyle{ {\frac{\Delta x}{\Delta t}} = {\frac{v_{ix} + v_{fx}}{2}} }[/math]

Algebraic Derivation

Change in momentum is [math]\displaystyle{ \Delta p = F_{net} * \Delta t }[/math] which is also equal to [math]\displaystyle{ F_{net} = {\frac{\Delta p}{\Delta t}} }[/math].

When evaluating the change in momentum as time approaches zero, [math]\displaystyle{ F_{net} }[/math] becomes constant. When the change in time with respect to momentum is 0, [math]\displaystyle{ p = p_i }[/math].

[math]\displaystyle{ v_x = {\frac{dx}{dt}} = {\frac{F_{net}}{m}}t + v_{ix} }[/math]

[math]\displaystyle{ v_{avg} = {\frac{x_f - x_i}{t}} = {\frac{1}{2}}{\frac{F_{net}}{m}}t + v_{ix} = {\frac{1}{2}}(v_{fx} - v_{ix}) + v_{ix} }[/math]

[math]\displaystyle{ v_{fx} = v_x = {\frac{F_{net}}{m}}t + v_{ix} }[/math]

After simplifying, [math]\displaystyle{ v_{avg} = {\frac{v_{ix} + v_{fx}}{2}} }[/math] where [math]\displaystyle{ v_x }[/math] changes at a constant rate.

Another way to look at it is where you start from the formula, [math]\displaystyle{ \frac{v_f + v_i}{2} }[/math], and do:

[math]\displaystyle{ v_{avg} = {\frac{\Delta x}{\Delta t}} = {\frac{1}{t_f-t_i}}\int_{t_i}^{t_f}v(t), dt }[/math], where [math]\displaystyle{ v(t) = a(t - t_i) + v_0 }[/math]

Plugging in [math]\displaystyle{ v(t) }[/math] into the integral would result in:

[math]\displaystyle{ {\frac{1}{t_f-t_i}}\int_{t_i}^{t_f}a(t - t_i) + v_0, dt }[/math]

Integrating separately,

[math]\displaystyle{ \frac{1}{t_f-t_i} * \int a(t_f - t_i) + v_0 - \int a(t_i - t_i) }[/math]

[math]\displaystyle{ = \frac{1}{t_f-t_i} * \int v_0 + \int at_f - at_i - \int v_0 }[/math]

[math]\displaystyle{ = \frac{1}{t_f-t_i} * \int at_f - at_i }[/math]

[math]\displaystyle{ = \frac{1}{t_f-t_i} * \frac{at_f^2}{2} - \frac{at_i^2}{2} }[/math]

[math]\displaystyle{ = \frac{1}{t_f-t_i} * \frac{at_f^2at_i^2}{2}, (t_f^2-t_i^2) = (t_f-t_i)(t_f+t-i) }[/math]

[math]\displaystyle{ = \frac{1}{t_f-t_i} * \frac{a(t_f-t_i)(t_f+t_i)}{2} }[/math]

[math]\displaystyle{ = \frac{a(t_f+t_i)}{2}, a = \frac{v(t)}{t} }[/math]

[math]\displaystyle{ = \frac{v_f+v_i}{2} }[/math]

Solving the integral results in the original equation, [math]\displaystyle{ \frac{v_f + v_i}{2} }[/math]

Examples

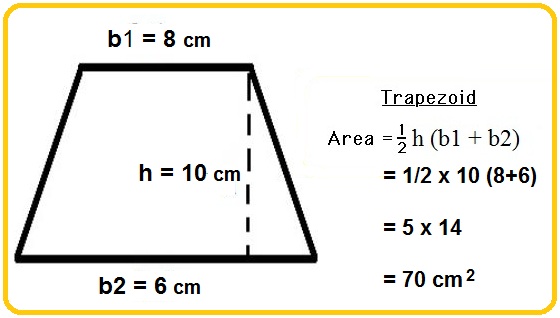

Geometric Model Example

Area of the trapezoid = [math]\displaystyle{ x_{tot} }[/math]
Altitude = [math]\displaystyle{ \Delta t }[/math]
Top side of trapezoid = [math]\displaystyle{ v_{xi} }[/math]
Bottom side of trapezoid = [math]\displaystyle{ v_{xf} }[/math]

Algebraic Model Example

Connectedness

Using basic, fundamental mathematical variables to prove physics equations shows the connection between math and science and how the same concept of limits and derivatives applies to an important, primary scientific principle in average velocity. One could also use Computer Science to create a program that could derive the average velocity formula.
