Doppler Effect

This topic covers the Doppler Effect.

The Main Idea

The Doppler Effect is the change of wavelength or frequency of a wave whenever its source is moving relative to the observer. A real life example of the Doppler Effect is when a vehicle, for example an ambulance, passes by the observer and when the ambulance approaches, the pitch increases but after the ambulance passes by the observer, the sound drastically recedes, as shown in this YouTube video: https://www.youtube.com/watch?v=a3RfULw7aAY.

Explanation

The increase in frequency and smaller wavelength is due to the source of the waves moving towards the observer as each successive wave crest is emitted closer to the observer from the previous wave.

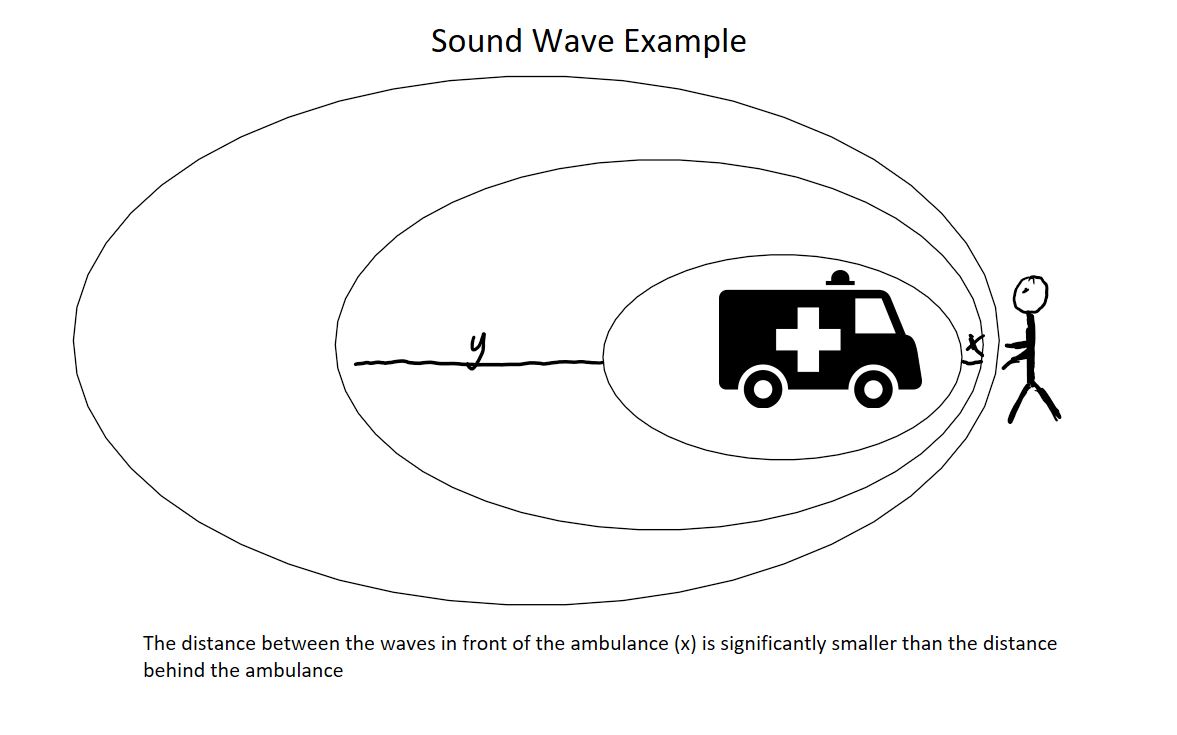

The drastic reduce of pitch after the source moves past the observer is due to the movement of the waves as seen in the image example below.

The Doppler Effect is not only shown in sound waves as in the example of the ambulance and the image above. But also with other waves such as water waves and light waves.

Formula

General Formula

[math]\displaystyle{ f = \left( \frac{c + v_\text{r}}{c + v_\text{s}} \right) f_0 \, }[/math]

where

[math]\displaystyle{ f{0} }[/math] is the emitted frequency;

[math]\displaystyle{ f }[/math] is the observed frequency;

[math]\displaystyle{ c \; }[/math] is the velocity of waves in the medium;

[math]\displaystyle{ v_\text{r} \, }[/math] is the velocity of the receiver relative to the medium; positive if the receiver is moving towards the source (and negative in the other direction);

[math]\displaystyle{ v_\text{s} \, }[/math] is the velocity of the source relative to the medium; positive if the source is moving away from the receiver (and negative in the other direction).

Examples

A cop car drives at 45 m/s toward the scene of a crime, with its siren blaring at a frequency of 2500 Hz. At what frequency do people hear the siren as it approaches? At what frequency do they hear it as it passes? The speed of sound in the air is 343 m/s.

Connectedness

1. I was always interested in sound as I am from New York and I love New York City. Having heard all of this noise from car honking, I was initially curious as to why there's such a huge change when the car moves past me when I'm walking on the sidewalk. I've later watched The Big Bang Theory and they explained as to why this occurs so I was always fascinated by this topic.

History

Christian Doppler formulated the principle the Doppler Effect as he is an Austrian mathematician and physicist. The principle originated in his essay from 1842 "On the coloured light of the binary stars and some other stars of the heavens". He came across the Doppler Effect as he tried to come up with an explanation of the color of binary stars.
