Producing a Radiative Electric Field

From Physics Book
Jump to navigation Jump to search

This page explains the relationship between measured radiative electric field and the properties of charges in a system.

Calculating Radiative Electric Field

Maintained by Charles Kilpatrick --Ck (talk) 14:18, 18 November 2015 (EST)

A Mathematical Model

The radiative electric field can be generally modeled as [math]\displaystyle{ \vec{E}_{radiative} = \frac{1}{4 \pi \epsilon_0} \frac{-q \vec{a}_\perp}{c^2r} }[/math] where q is the charge of the accelerated particle, [math]\displaystyle{ \vec{a}_\perp }[/math] is the projected acceleration, c is the speed of light and r is the distance between the charge and the observation location.

A Computational Model

The following is a vPython model of Radiative Electric Field due to an instant of acceleration (a "kick") on a charged particle.

3d Radiation vPython Model

The acceleration vector, an initial kick in the +x direction, is represented by the yellow arrow in the center. The orange arrows seen in the model represent [math]\displaystyle{ \vec{E}_{radiative} }[/math] and the cyan arrows represent the corresponding [math]\displaystyle{ \vec{B}_{radiative} }[/math] at distance r from the particle.

Examples

Simple

An electron at the origin is kicked in the -y direction. At observation location (0, 0, 1), what is the direction of the radiative electric field?

The radiative electric field at this location is known as the traverse electric field, which always has a direction opposite the direction of [math]\displaystyle{ \vec{a}_\perp }[/math]. Thus, [math]\displaystyle{ \vec{E}_{radiative} }[/math] at the observation location points in the +y direction.

Middling

If the angle represented by θ is 60 degrees and [math]\displaystyle{ |a| }[/math] is 8.1 * 10^14 m/s^2, what is [math]\displaystyle{ |a_\perp| }[/math]?

Procedure

Because the angle represented by θ is opposite the [math]\displaystyle{ a_\perp }[/math] vector, we simply multiply [math]\displaystyle{ |a| }[/math] by sin(θ) to compute our answer:

[math]\displaystyle{ 8.1 * 10^{14} m/s^2 * sin(60) = 7.05 * 10^{14} m/s^2 }[/math]

Difficult

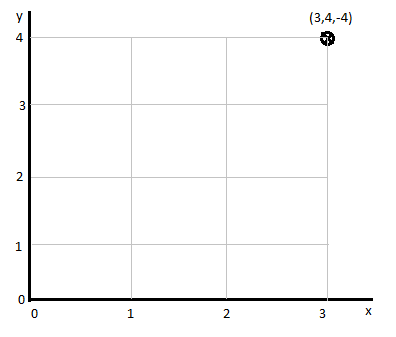

An electron experiences a kick with initial acceleration [math]\displaystyle{ a_\perp }[/math]=3.6 * 10^17 in the -z direction at a point (3, 4, -4) away from the origin. Calculate the direction and magnitude of the initial radiative field at the origin and at (2, 3, 0).

Procedure

For [math]\displaystyle{ E_{rad} }[/math] at the origin,

[math]\displaystyle{ E_{rad}=\frac{1}{4\pi\epsilon_0}\frac{-q\vec{a}_\perp}{c^2r} }[/math]

[math]\displaystyle{ r=\sqrt{3^2 + 4^2 + 4^2} \approx 6.40 }[/math]

[math]\displaystyle{ E_{rad}=9 * 10^9\frac{e(3.6 * 10^{17})}{c^2 * 6.40} = \frac{8.1 * 10^{7}}{c^2} \approx 9.0 * 10^{-10} }[/math]

Thus the magnitude of the initial radiative field at the origin is 9.0 * 10^-10 V/m.


For [math]\displaystyle{ E_{rad} }[/math] at (2,3,0),

[math]\displaystyle{ E_{rad}=\frac{1}{4\pi\epsilon_0}\frac{-q\vec{a}_\perp}{c^2r} }[/math]

[math]\displaystyle{ r=\sqrt{1^2 + 1^2 + 4^2} \approx 4.24 }[/math]

[math]\displaystyle{ E_{rad}=9 * 10^9\frac{e(3.6 * 10^{17})}{c^2 * 4.24} = \frac{1.2 * 10^{8}}{c^2} \approx 1.36 * 10^{-9} }[/math]

Thus the magnitude of the initial radiative field at (2,3,0) is 1.36 * 10^-9 V/m.


As for the directions, because [math]\displaystyle{ -qa_{\perp} }[/math] is in the -z direction, both fields also point in the -z direction.
